60KG Capacity Solder Recovery System Wave Solder Dross Processing Machine Tin Oxide Dross Separator

1 세트
MOQ
협상 가능
가격
60KG Capacity Solder Recovery System Wave Solder Dross Processing Machine Tin Oxide Dross Separator
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
하단 주석의 혼합 용량: 60kg
기계 전원: 4.0kW
분리 속도 범위: 15KG /60분
먹이는 문: ≤10KG 찌꺼기*2
순 중량: 약 140Kg
차원: 730*(l) 1000 (w)*900 (h) mm
강조하다:

60KG solder dross separator machine

,

wave solder dross processing system

,

tin oxide dross separator machine
기본 정보
원래 장소: 중국
브랜드 이름: HONREAL
모델 번호: HR-SD200
결제 및 배송 조건
포장 세부 사항: Woodencase
배달 시간: 5-10 일
지불 조건: L/C, T/T, Western Union
공급 능력: 100sets/월
제품 설명
60KG Capacity Solder Recovery System Wave Solder Dross Processing Machine Tin Oxide Dross Separator
Product Specifications
Attribute Value
Mixing Capacity of Bottom Tin 60KG
Machine Power 4.0KW
Separation Speed Scope 15KG /60mins
Feeding gate ≤10KG dross*2
Net weight About 140KG
Dimension 730*(L)1000(W)*900(H)MM
Product Description

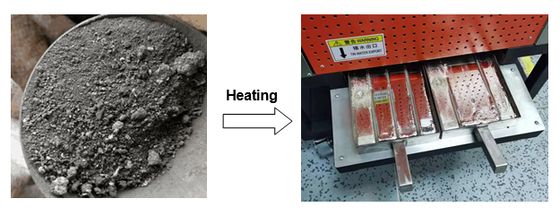

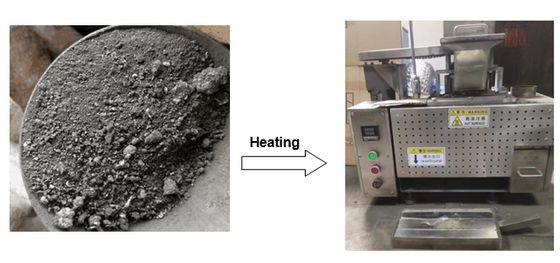

The solder dross recycling machine is mainly used to reduce and directly recycle the oxides - solder dross generated during the soldering process of wave soldering machines by means of heating, so as to reduce production costs, protect the environment and help improve product quality.

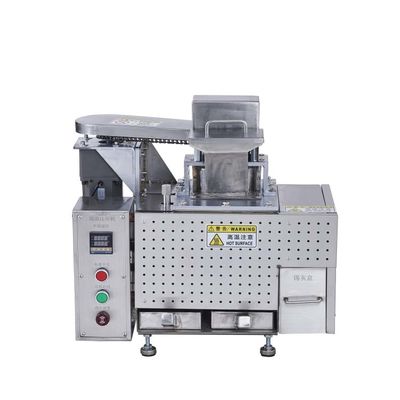

This machine adopts a special stirring structure. The crushed solder dross is automatically input into the stirring area through the feeding hopper for stirring and separation, directly separating the solder from the solder oxide.
HR-60 Features
  • The tin dross reduction yields excellent results with a high reduction rate (specifically dependent on tin content).
  • No chemical substances need to be added; high-quality solder can be separated directly from the product itself.
  • It features button control and is equipped with a digital temperature control gauge for precise temperature regulation.
  • The entire cabinet is made of stainless steel, allowing for easy cleaning.
  • The stirring zone is constructed from special 316 stainless steel, with a tin dross capacity of approximately 60KG.
  • An external heating tube is adopted for heating, enabling complete melting of tin dross.
  • It comes with an electronic liquid level alarm and a manual tin discharging mode.
  • Tin and tin ash are automatically separated, entering their respective collection devices.
  • An independent smoke filtration system is available as an option.
Technical Parameters
Item Parameter
Model HR-60
Mixing motor 1φ 220V 120W
Mixing Heating Power 4KW
Mixing Capacity of Bottom Tin Approximately 60KG
Temperature Scope Room temperature -360℃
Heating-up time 50MIN
Feeding time Continuous30-40kg/60min
Dimension 730*(L)1000(W)*900(H)MM
Totol Power Consumption 4KW
Normal running power 2KW
Power 1φ220V 50Hz
Net Weight Appro*140kg
60KG Capacity Solder Recovery System Wave Solder Dross Processing Machine Tin Oxide Dross Separator 0
Company Information
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise, specializing in SMT equipment research and development, production, sales. Services for the world's top 500 electronic companies. The registered capital of the company is 5 million. Having experienced technical team and excellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
60KG Capacity Solder Recovery System Wave Solder Dross Processing Machine Tin Oxide Dross Separator 1
Our Service
  • Pre-consultation: provides professional SMT solutions for the full line.
  • Factory Warranty: One-year warranty factory service.
  • Installation: On-site installation and commissioning, to ensure smooth production.
  • Technical Training: provides professional training from Level 1 to Level 3.
  • Technical support: provides 7 * 24 technical support.
  • Software Upgrade: offers lifetime free software upgrades for all products.
FAQ
This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
How is the training?
After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service, we're do this. Besides, it's totally free, so just tell us your requirements.
How can I buy this machine from you? (Very easy and flexible!)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price, shipping, payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F. Send your order by air or by sea.
60KG Capacity Solder Recovery System Wave Solder Dross Processing Machine Tin Oxide Dross Separator 2
Contact Us
Company Shenzhen Honreal Technology CO.,Ltd.
Address No15,Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel +86 755 2302 0279
Fax +86 755 2330 6782
Zip code 518125
Skype/Whatsapp/Wechat +8613715227009
Email Monica@szhonreal.com
